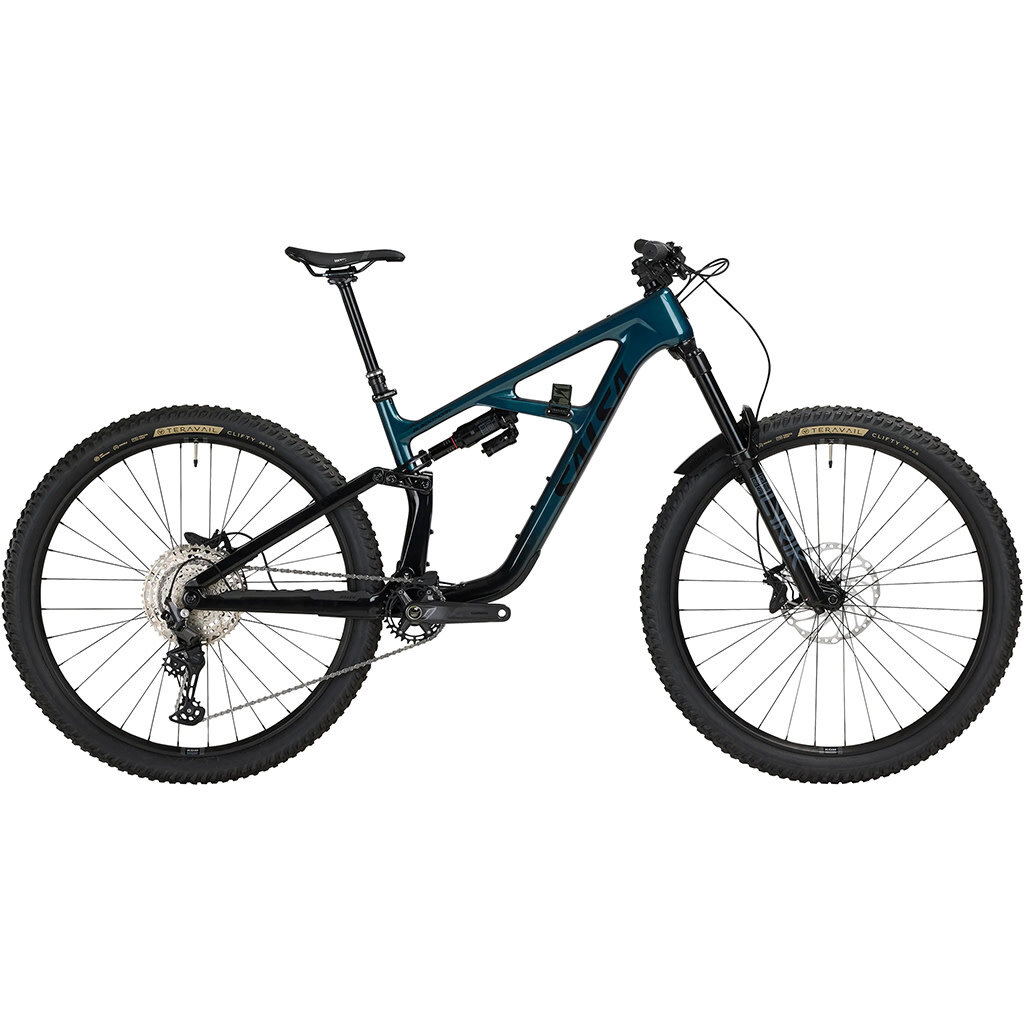

Blackthorn’s Split Pivot suspension adds to its efficiency with a design that pedals exceptionally well and maintains traction even while braking through your full range of travel. With 145mm rear travel and a 160mm fork, you can lean into those coming-in-hot moments without losing control.
On-bike cargo mounts let you rethink the need for a hip pack: mount two bottles, your multitool and tube, plus our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount directly to your frame to stay supplied on more remote rides. Shimano’s Deore 12-speed drivetrain is a reliable workhorse with components you rarely have to think about.
| FRAMESET: | |
| Frame: | Blackthorn 145 Carbon |
| Color: | Black/Slate |
| Suspension Fork: | RockShox Lyrik, 160mm |
| Rear Shock: | RockShox Super Deluxe |
| COMPONENTS: | |
| Headset: | FSA Orbit 1.5E ZS NO.57E |
| Seatpost: | TranzX YSI05 RAD+ w/ Shimano SL-MT500 I-Spec EV lever, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel |
| Stem: | Salsa 35.0 Guide Trail, 40mm |
| Grips/Bar Tape: | Salsa File Tread Lock-on |
| Saddle: | WTB Solano, Medium, Steel Rail, Fusion Form |
| Handlebar: | Race Face Chester |
| DRIVETRAIN: | |
| Front Derailleur: | N/A |
| Rear Derailleur: | Shimano Deore M6100–SGS |
| Cassette: | Shimano Deore M6100, 10–51t, 12-speed |
| Chain: | Shimano Deore M6100, HYPERGLIDE+ |
| Crankset: | Shimano Deore MT512, 30t w/ MRP 1x SL ISCG-05 bashguard |
| Shifter: | Shimano Deore M6100, I-Spec EV |
| Brake Levers: | Shimano Deore M6100 |
| Brake Calipers: | Shimano Deore M6120, 4-piston |
| Bottom Bracket: | Shimano MT501 |
| Rotors: | Shimano Deore RT64 (Center Lock, 203mm front and rear) |
| WHEELS: | |
| Front Tire: | Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included |
| Rear Tire: | Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included |
| Front Hub: | Shimano TC500 15 x 110mm |
| Rear Hub: | Shimano TC500 12 x 148mm |
| Spoke: | Butted steel, black |
| Rim: | WTB KOM Trail i30 TCS, 32h |
| WEIGHT: | |
| Complete Bike: |
