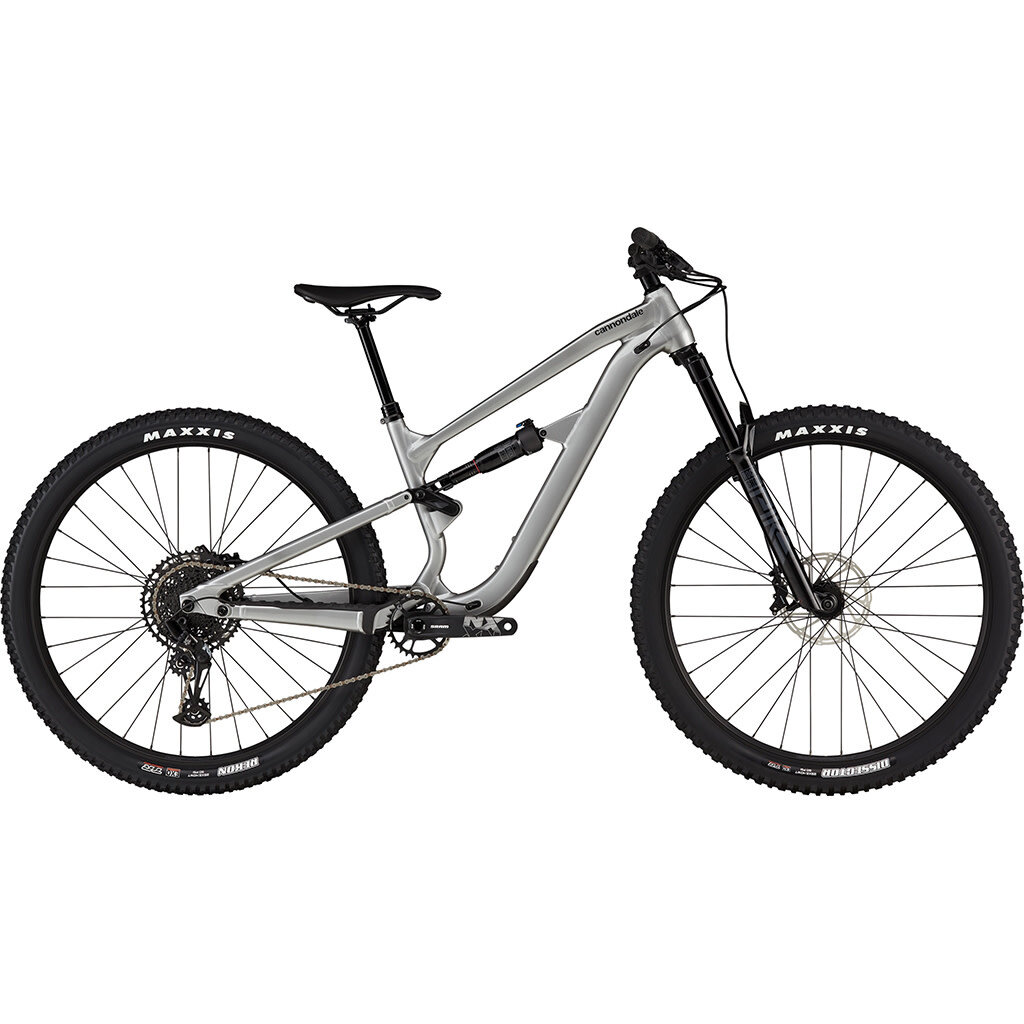

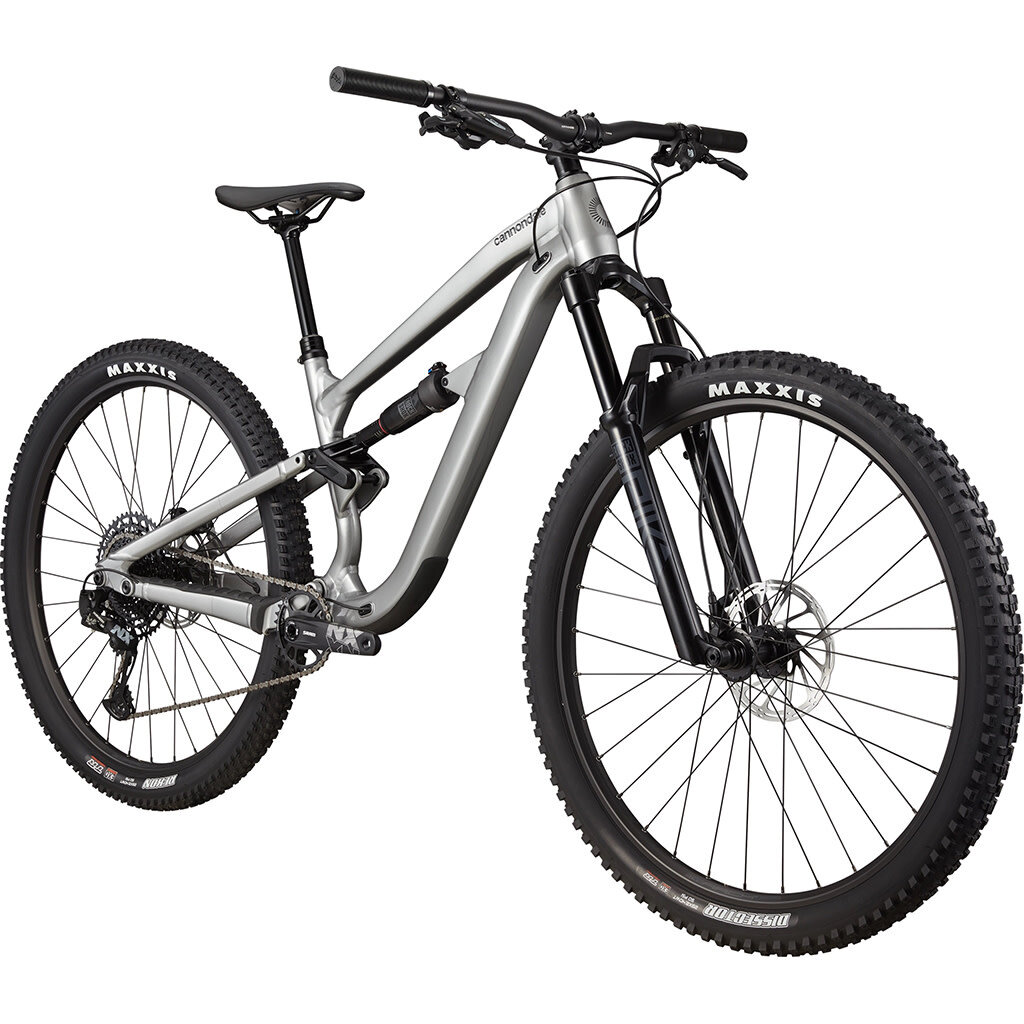

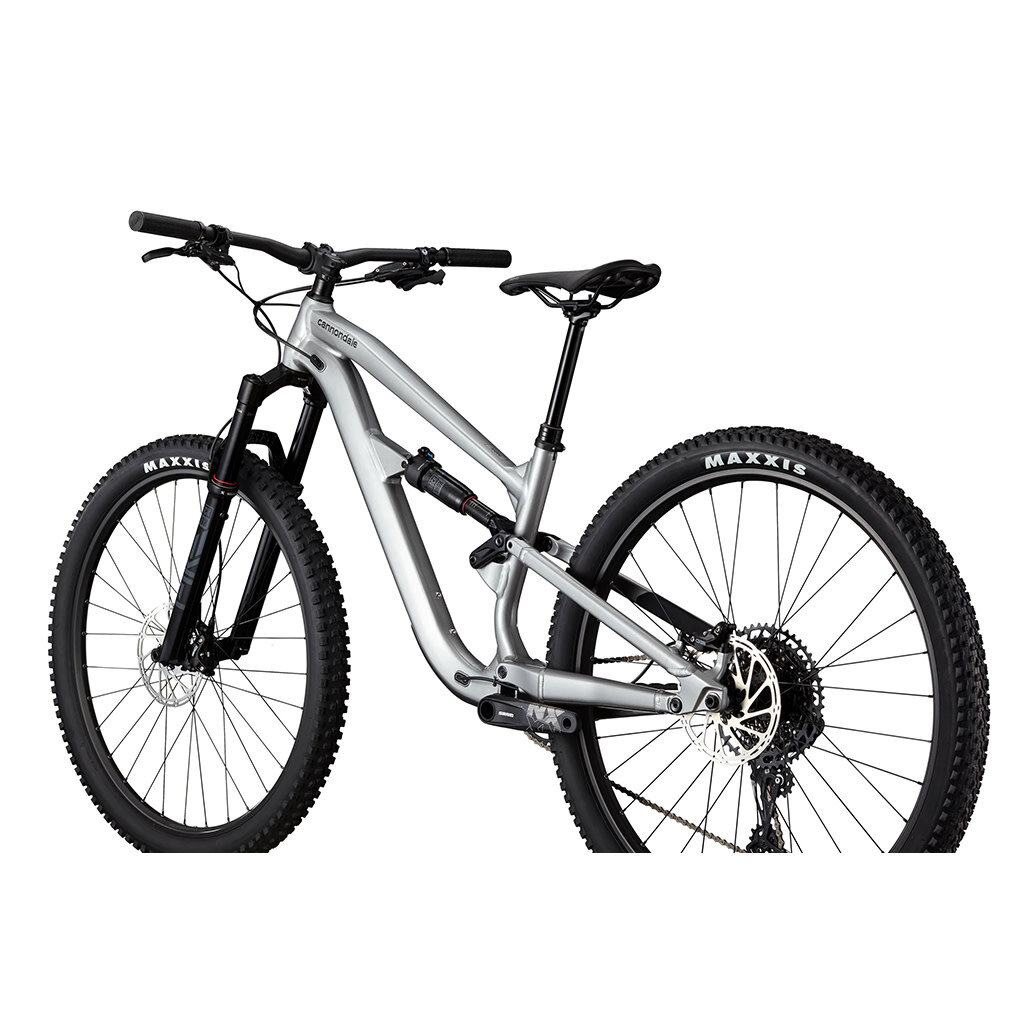

The Habit geometry is uniquely size specific. With our Proportional Response Design, everything from the suspension layout to, the geometry —even the length of the chain stays — is completely customized by size. Performance built, just for you. With a head tube angle of 65.5° and the seat tube set at 77.5°, you are sitting in the optimal position for powering uphill, shredding downhill, and stopping to smell the roses. Keeping things simple and easy for the rider with threaded BBs, universal derailleur hanger, standard shock mount, internal cable routing, and an updated 55mm chain line standard for tire clearance. All designed to make it as easy as possible to live with and to love.
| DRIVETRAIN: | |
| Bottom Bracket: | SRAM DUB BSA MTB73 Wide |
| Chain: | SRAM SX Eagle, 12-speed |
| Crank: | SRAM NX Eagle DUB, 30T, 55mm chainline |
| Rear Cogs: | SRAM NX Eagle, 10-50, 12-speed |
| Rear Derailleur: | SRAM NX Eagle |
| Shifters: | SRAM NX Eagle, 12-speed |
| FRAMESET: | |
| Fork: | RockShox Pike, 140mm, DebonAir, 15x110mm thru-axle, tapered steered, 42mm offset |
| Frame: | Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger |
| Headset: | Integrated Sealed Bearing, Tapered |
| WHEELS: | |
| Front Hub: | Formula, 15x110mm thru-axle |
| Rear Hub: | Formula, 12x148mm thru-axle |
| Rims: | Stan's NoTubes Arch D, 32h, tubeless ready |
| Spokes: | Stainless Steel, 14g |
| Tire Size: | 2.4 |
| Tires: | (F) Maxxis Dissector, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready, (R) Maxxis Rekon, 29x2.4" (27.5x2.4" - XS) EXO, tubeless ready |
| Wheel Size: | 29, 27.5 (XS) |
| Brake Levers: | SRAM G2 R hydraulic disc |
| Brakes: | SRAM G2 R hydraulic disc, 180/180mm CenterLine rotors, 6-bolt |
| Grips: | Cannondale TrailShroom |
| Handlebar: | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Saddle: | Cannondale Scoop Shallow Sport, steel rails |
| Seatpost: | TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL) |
| Stem: | Cannondale 3, 6061 Alloy, 31.8, 0° |
