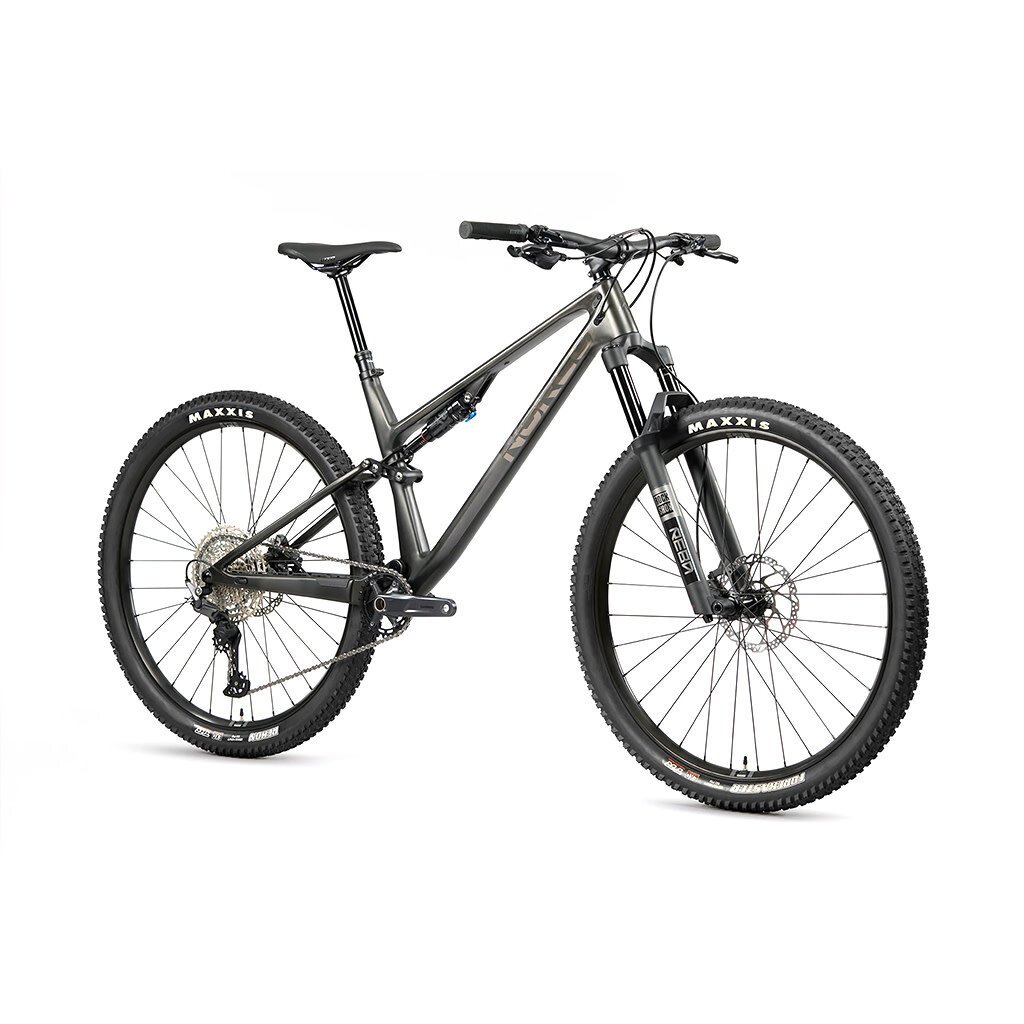

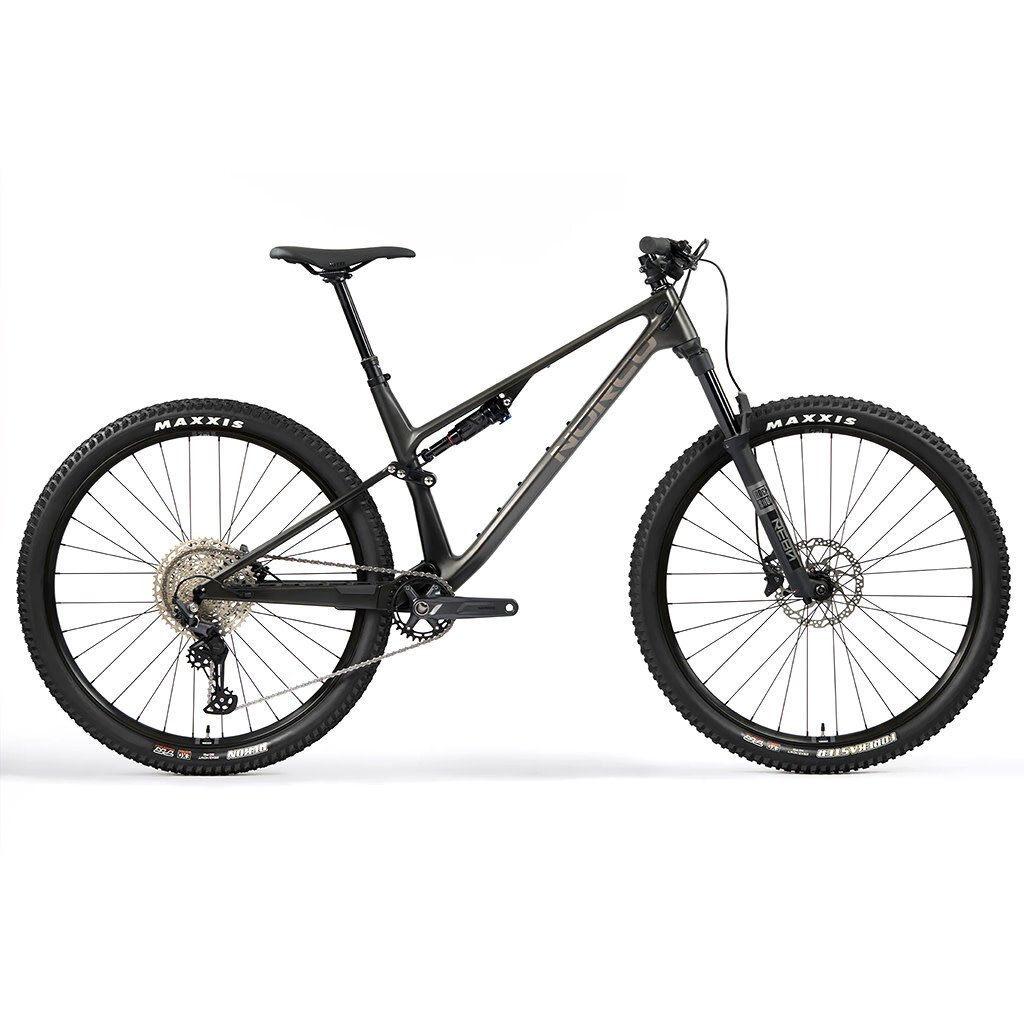

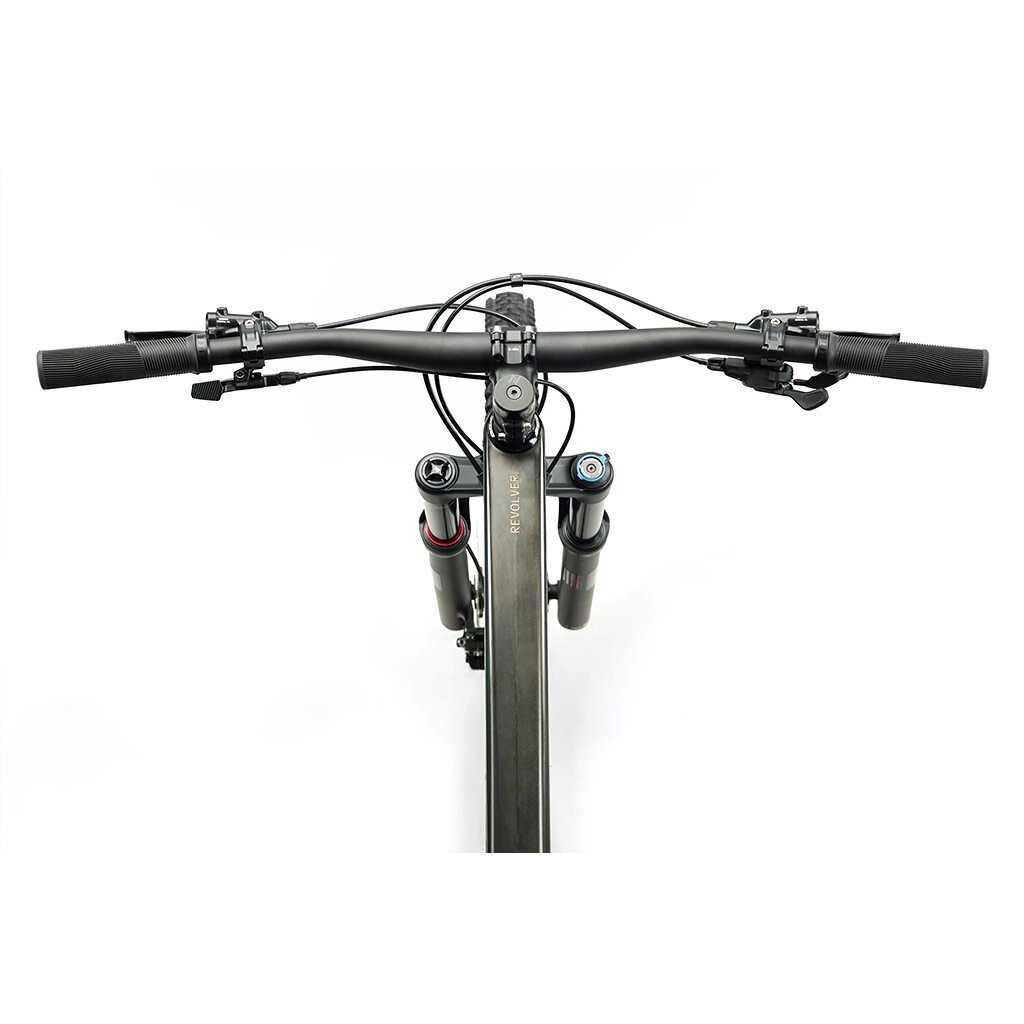

Norco Revolver C3 130

$3,999.00
The Revolver C3 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days.
In stock
+ -
Add to cart
Next Day Shipping Order by 6 pm, Mon-Fri *some exclusions apply
Free Same Day Pickup Order by 3 pm, Mon-Sat *some exclusions apply

You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.

The Revolver C3 130 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.

Features:

  • Precision and control for all day efficiency
  • All the suspension performance without the weight
  • Customized suspension development to support Revolver's best attributes
  • A lightweight frame that encourages putting the hammer down
  • Balanced weight distribution for top of class ride feel across sizes
  • Ride Aligned - perfect fit dialed handling and personalized setup in minutes



FRAMESET:
Frame: Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
Fork: Rockshox Reba RL, Motion Control, 130mm, 44mm offset
Rear Shock: Rockshox SID LUX Select +, 190x45mm, standard
DRIVETRAIN:
Shifter Rear: Shimano Deore SL-M6100, 12sp
Rear Derailleur: Shimano Deore RD-M6100, 12sp, SGS
Crankset: Shimano Deore FC-MT512, 32T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5)
Bottom Bracket: Shimano BB-MT501, BSA 73mm
Chain Tensioner:
Cassette: Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain: Shimano Deore CN-M6100-12, 12sp
BRAKES:
Front Brake: Shimano Deore BR-MT410, 2-Piston, Resin Pads
Front Brake Rotor: Shimano SM-RT64, 180mm, C-lock
Rear Brake: Shimano Deore BR-MT410, 2-Piston, Resin Pads
Rear Brake Rotor: Shimano SM-RT64, 180mm, C-lock
Brake Levers: Shimano Deore M4100
COMPONENTS:
Handlebar: Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise
Stem: Norco 6061, 50mm, 35mm Clamp
Seat Post: TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
Headset: FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
Saddle: WTB Silverado Medium
Grips: WTB Wavelength
Seat Post Clamp: Norco bolted, 34.9mm ID
WHEELS:
Front Hub: Shimano Deore HB-MT410, 15x110mm Boost, 32H, C-lock
Rear Hub: Shimano Deore FH-MT510, 12x148 Boost, Microspline, 32H, C-lock
Rims: WTB ST i27 TCS, 27mm ID, 32H, 29"
Front Tire: Maxxis New Forekaster, EXO, TR 29x2.40"
Rear Tire: Maxxis Rekon, EXO, TR 29x2.40"
Spokes/Nipples: Stainless steel
Rear Hub Skewer: 148mm x 12mm TA, L174, TL13, M12x1.6
Front Hub Skewer:
