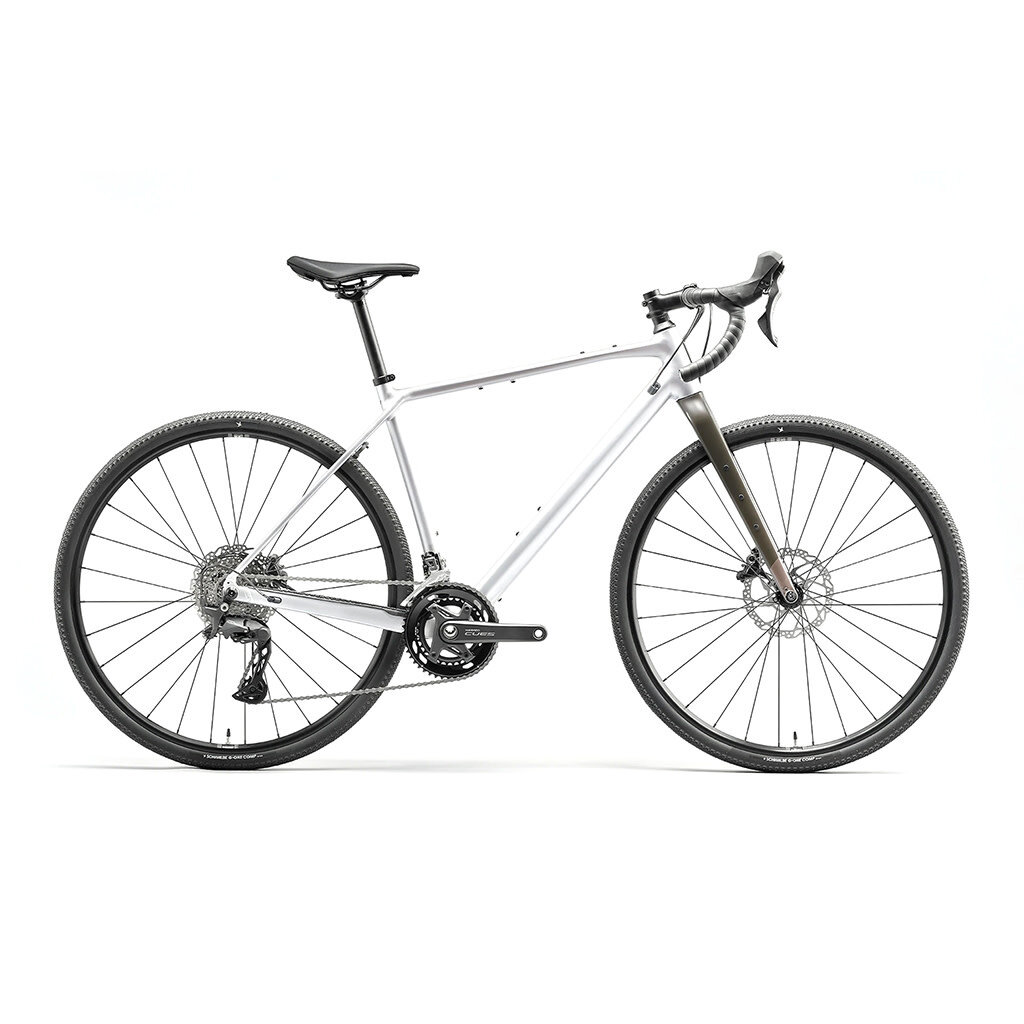

Search A CUES features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.
The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.
| Frame: | Search Butted Aluminum w/Smooth Welds |
| Fork: | Search Carbon, 51mm Offset, 12x100mm TA |
| Headset: | FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 ) |
| Front Derailleur: | Shimano CUES FD-U6030, 9/10sp, Down Swing |
| Rear Derailleur: | Shimano CUES RD-U6020, Shadow, 10sp |
| Cassette: | Shimano LG-400, 11-39T, 10sp |
| Chain: | KMC XGlide |
| Crankset: | Shimano CUES FC-U6030, 46-32T, 170mm |
| Bottom Bracket: | Shimano Cartridge Bearing, 68mm BSA |
| Shifter Front: | Shimano CUES ST-U6030, 2sp |
| Shifter Rear: | Shimano CUES ST-U6030, 11sp |
| Handlebar: | Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 42cm (S3) - 44cm (S4) - 46cm (S5), 16 Degree |
| Stem: | Norco SL Alloy 70mm Length, 31.8mm Clamp |
| Seat Post: | Norco Alloy, 27.2mm, 12Deg Offset, 300mm length |
| Seat Post Clamp: | Norco Aluminum, 31.8mm ID |
| Saddle: | Selle Royale SRX Gravel, 148mm |
| Front Brake: | Shimano CUES BR-U6030, Resin Pads |
| Rear Brake: | Shimano CUES BR-U6030, Resin Pads |
| Brake Levers: | Shimano CUES ST-U6030 |
| Bar Tape: | Griptacular Shockproof Tape 3mm |
| Front Hub: | Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock |
| Rear Hub: | Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H |
| Spokes/Nipples: | Sapim Leader 2.0mm - Black w/Black Brass Nipples |
| Rims: | WTB ST i25 2.0, 28h, 25mm ID |
| Front Tire: | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Rear Tire: | Schwalbe G-One Comp, K-Guard Recyclable, 700x40c |
| Rear Hub Skewer: | |
| Front Hub Skewer: |
